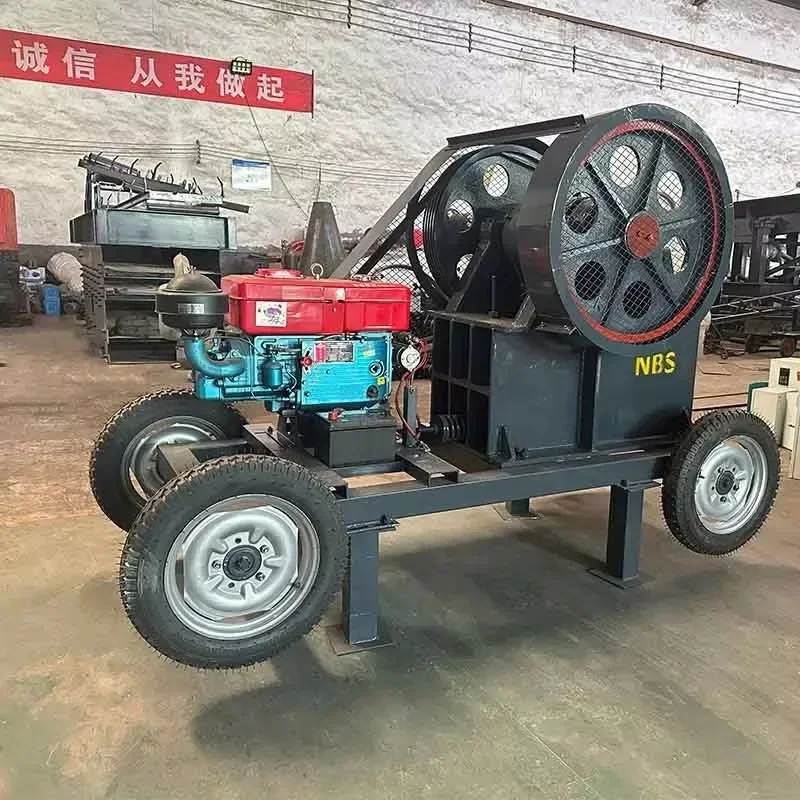

YG Factory Price Jaw Crusher Mining Stone PE 400 600 Jaw Crusher Quarry Mining Crusher Plant Primary Machine
(0
reviews)
Inhouse product
Price
$3,425.38
/
Refund
Not Applicable
Share
Top Selling Products
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
PLEASE NOTE:
1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
Faye(Sales Manager)
Email: sales13yugong@yg797.com
Whatsapp/Wechat/Mobile: +86 18737172261
1.The price only for reference, the specific cost based on your requirements and the destination port, please contact us for more product details and quotations
2.We ship you by sea !!!
3.Door to door please leave message or whatsapp or email for price !!!
Faye(Sales Manager)
Email: sales13yugong@yg797.com
Whatsapp/Wechat/Mobile: +86 18737172261
Factory Price Large Volume Jaw Crusher Mobile Crusher Durable Stone Crusher
Jaw crusher is combined with the secondary crushing equipment in the whole stone crushing line,like cone crusher and impact crusher. Due to their smaller physical size, jaw crushers are also ideal for tight spaces, such as underground mining and mobile crushing applications. Now it is widely applied in mining, metallurgy,quarry, building waste, smelting,electricity, building material, highway, railway, water conservancy, transportation, chemical industries and other fields.
Main Technical Paraments
|
Model
|
Opening size(mm)
|
Max feeding size(mm)
|
Output adjustment range(mm)
|
Production capacit(t/h)
|
|
PE150*250
|
150*250
|
125
|
10-40
|
1-3
|
|
PE200*300
|
200*300
|
180
|
15-50
|
2-6
|
|
PE200*350
|
200*350
|
180
|
18-70
|
3-10
|
|
PE250*400
|
250*400
|
200
|
20-50
|
5-20
|
|
PE400*600
|
400*600
|
350
|
40-100
|
15-60
|
|
PE500*700
|
500*700
|
425
|
50-100
|
40-110
|
|
PE600*900
|
600*900
|
480
|
65-160
|
90-180
|
|
PE750*1060
|
750*1060
|
630
|
80-140
|
110-320
|
|
PE900*1200
|
900*1200
|
750
|
95-165
|
220-450
|
|
PE1200*1500
|
1200*1500
|
1020
|
150-300
|
400-800
|
|
PEX150*750
|
150*750
|
125
|
18-48
|
5-16
|
|
PEX250*750
|
250*750
|
210
|
25-60
|
15-30
|
|
PEX250*1000
|
250*1000
|
210
|
25-60
|
15-30
|
|
PEX250*1200
|
250*1200
|
210
|
25-60
|
20-60
|

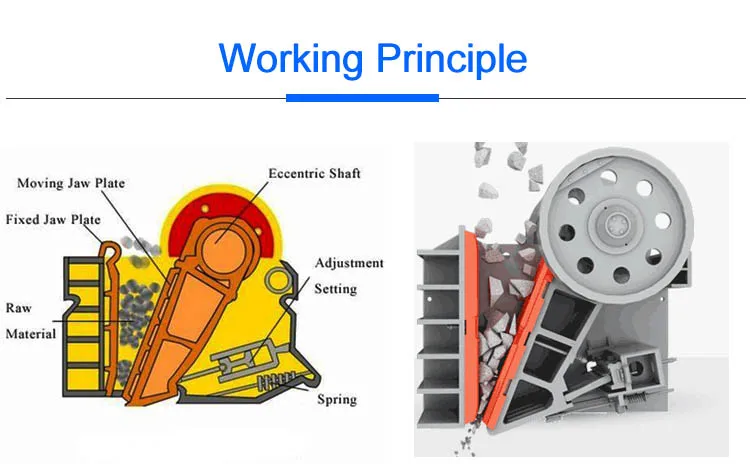

Working Principle
Woking Principle
Working principle of stone jaw crusher motor drives the eccentric axis rotating through the belt pulley, so that the
movable jaw approaches and leaves the fixed jaw cyclical, which makes the materials squeezed, rubbed, multi-roller crusher, etc. so that the materials are crushed into small size, and then decline gradually, at last discharge from the discharging mouth.
Jaw crusher features: 1. The jaw crusher cavity is deep and there is no dead zone, which improves the feeding capacity and output; 2. The crushing ratio is large and the product size is uniform; 3. Gasket-type discharge opening adjustment device is reliable and convenient, with a large adjustment range, which increases the flexibility of the equipment; 4. The lubrication system is safe and reliable, the replacement of parts is convenient, and the maintenance workload is small; 5. Simple structure, reliable work, low operating cost; 6. Equipment energy saving: single machine energy saving 15%~30%; 7. The adjustment range of the discharge opening is large, which can meet the requirements of different users; 8. Low noise

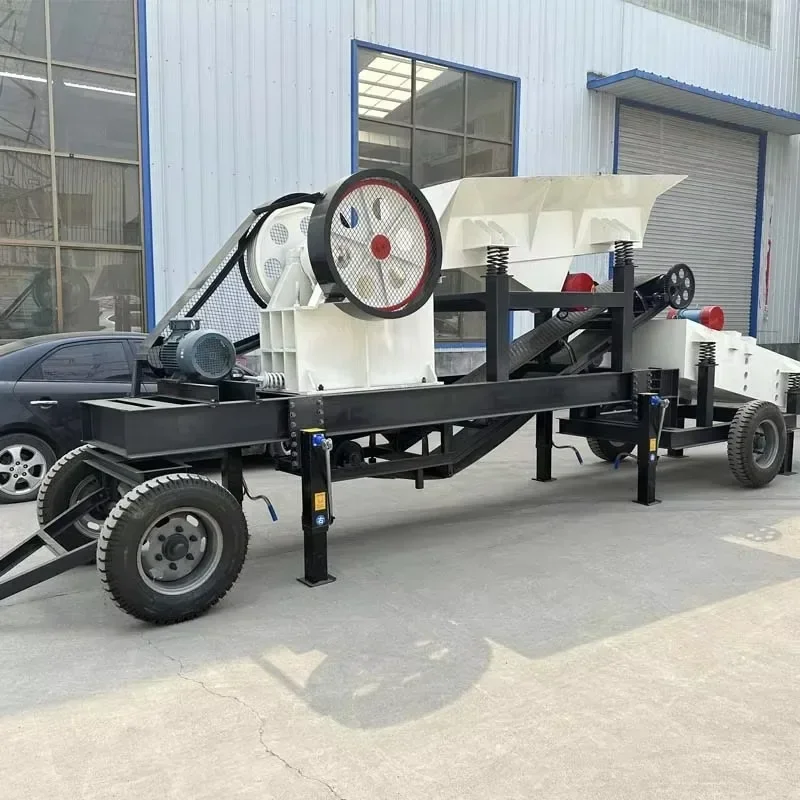

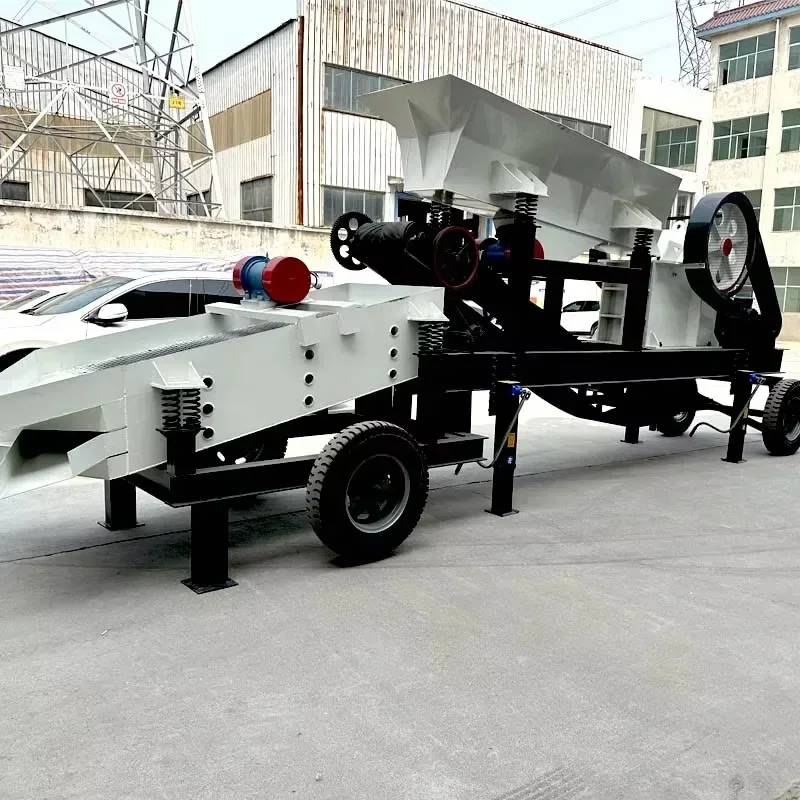

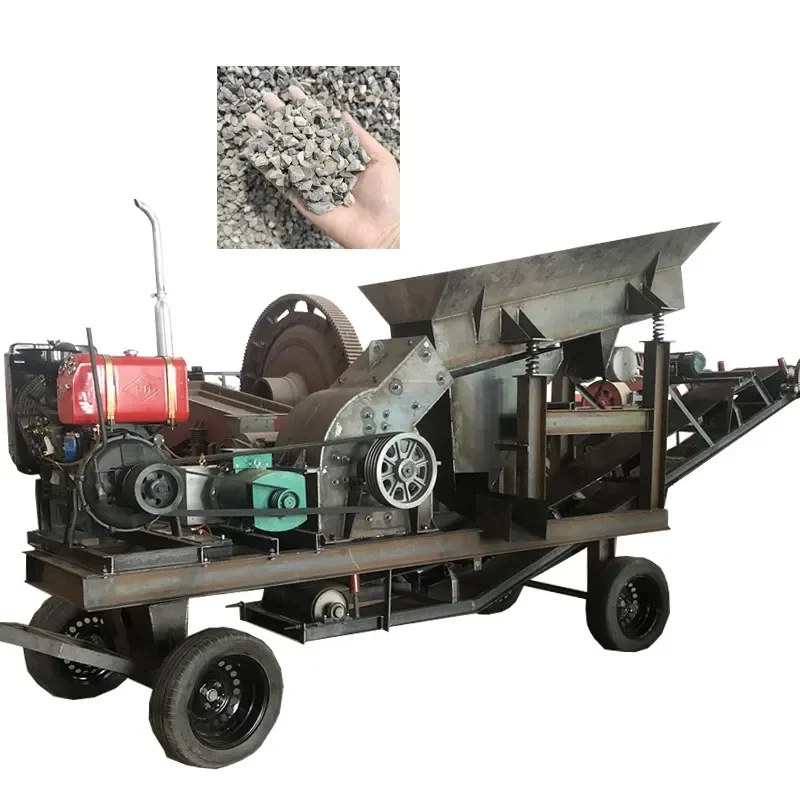

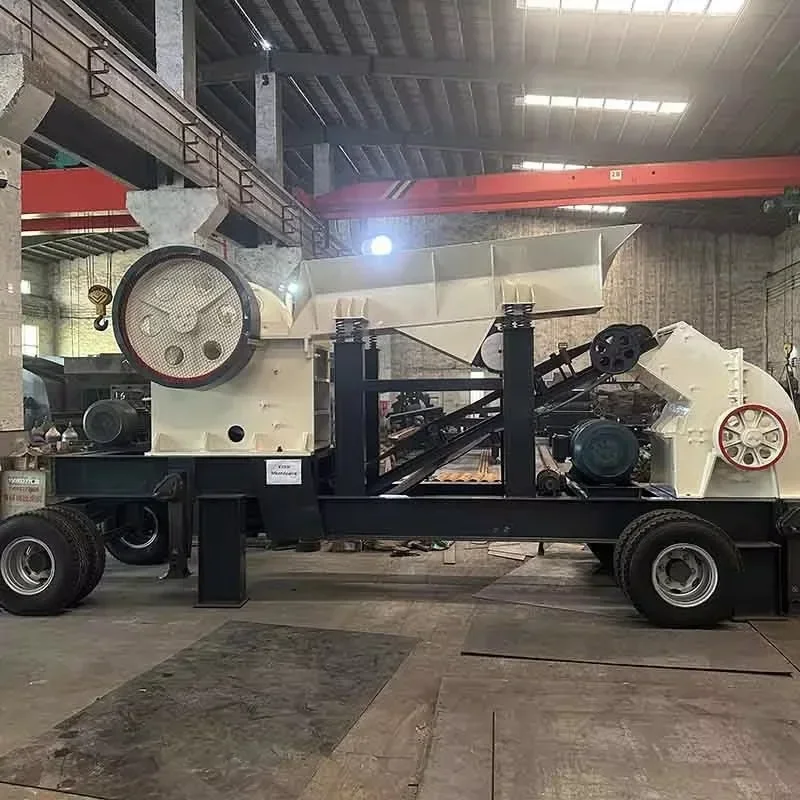

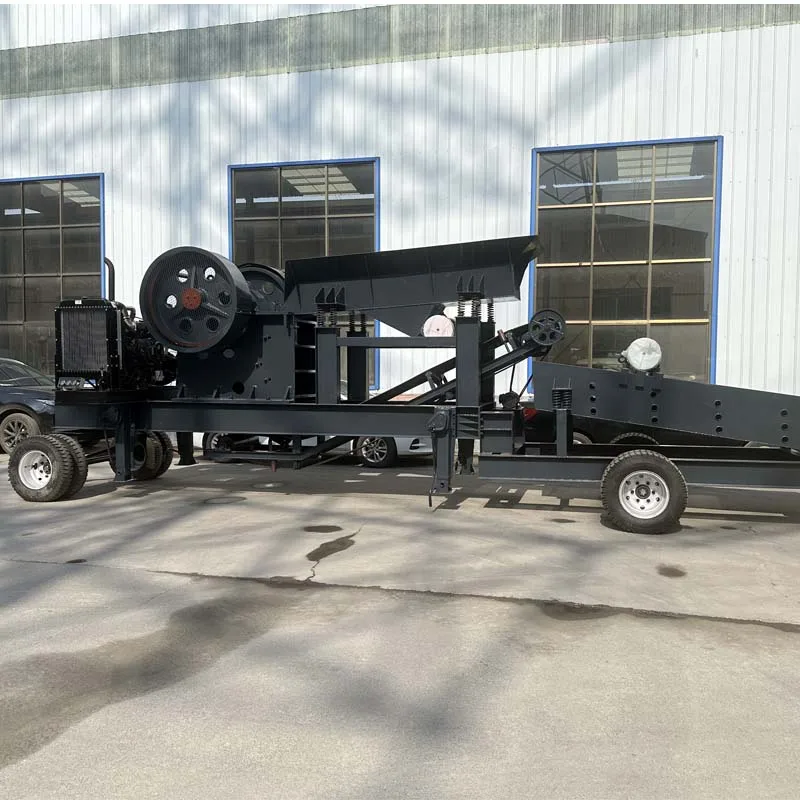

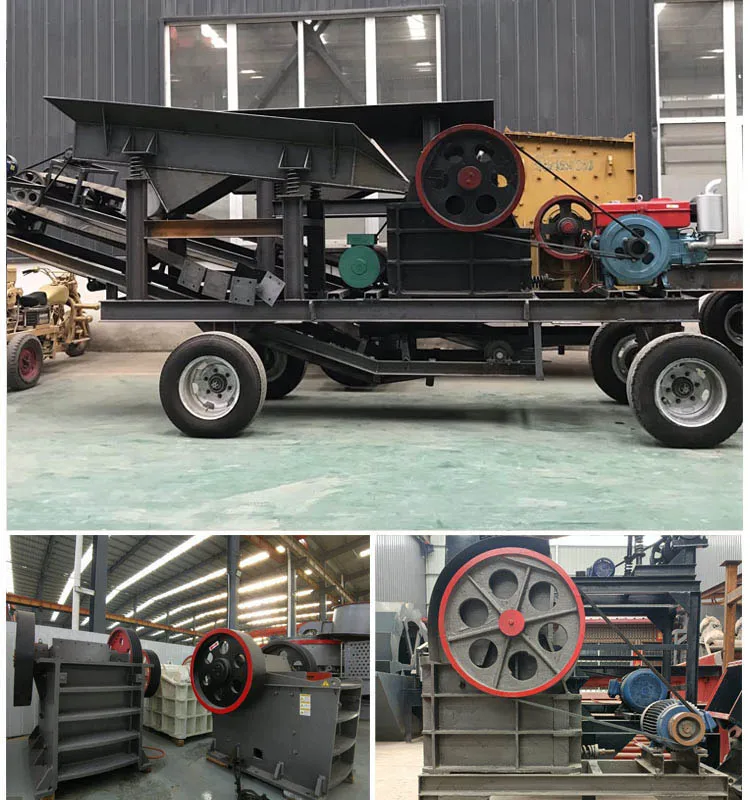

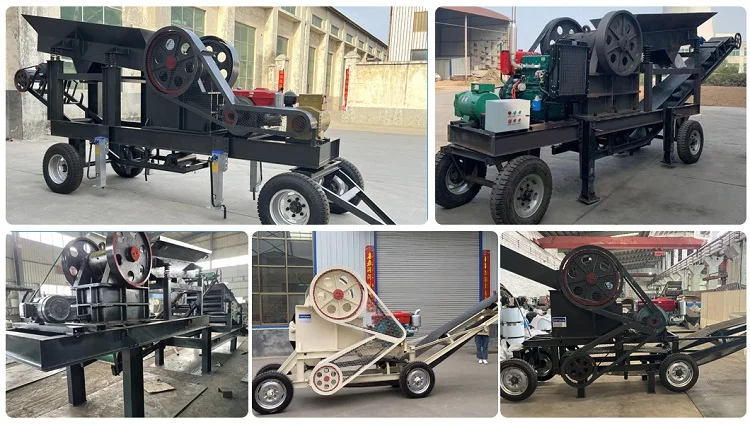

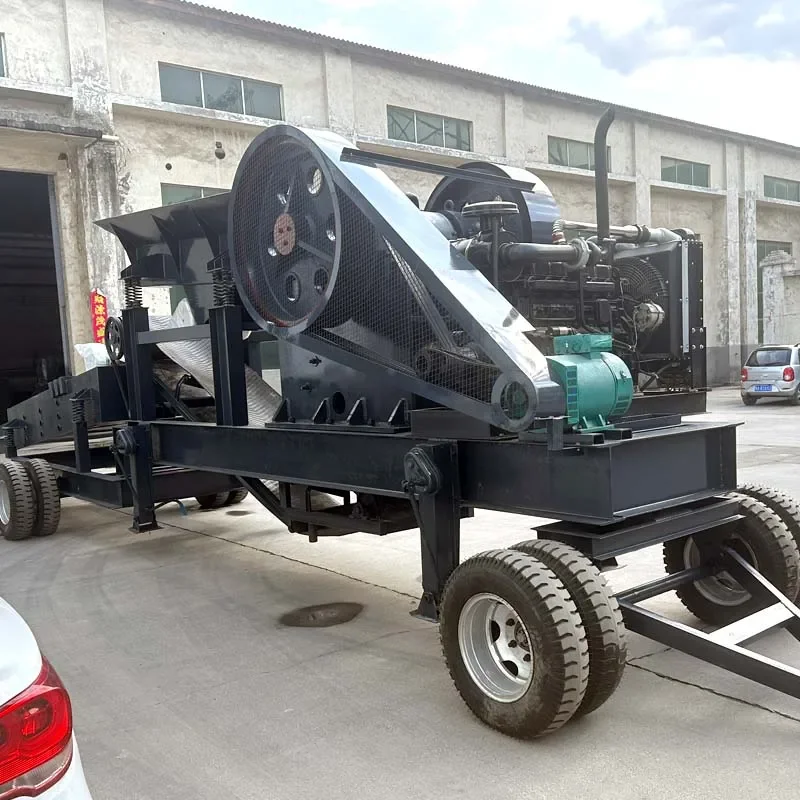

Product Display

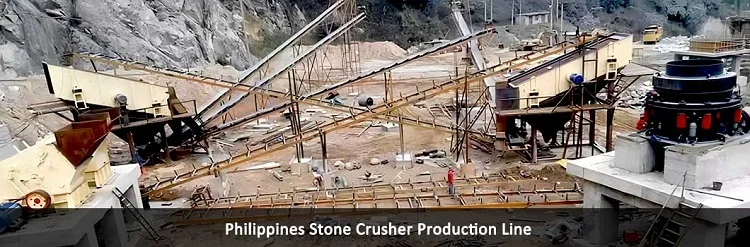

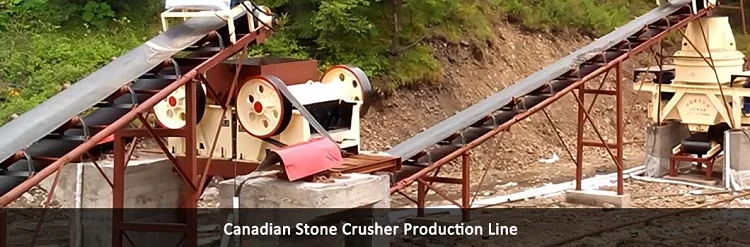

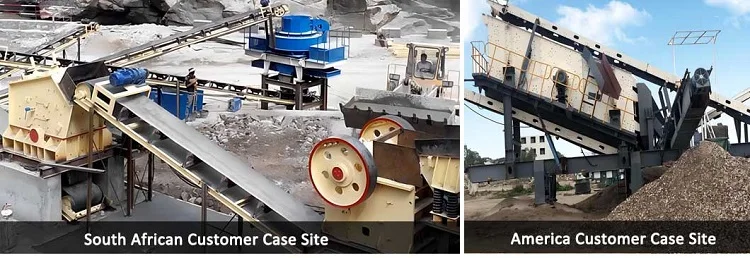

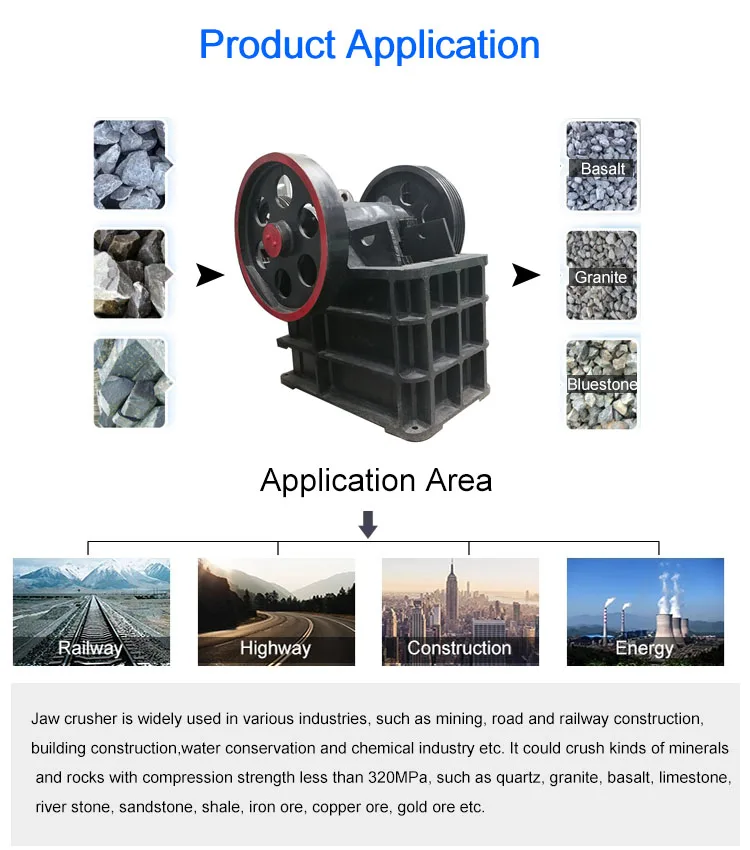

Application Field

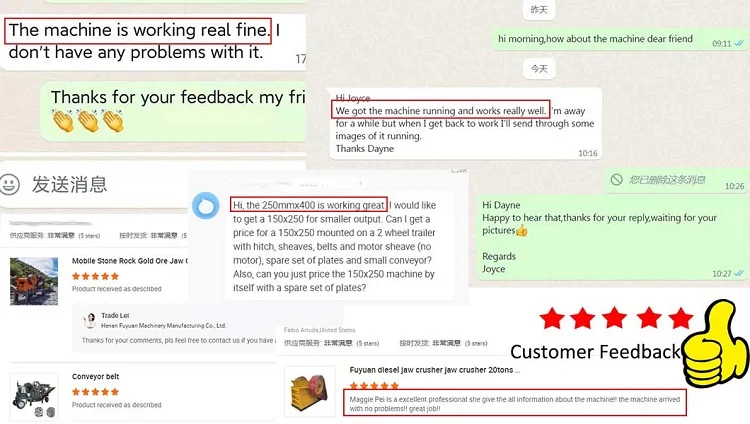

Good Feedback

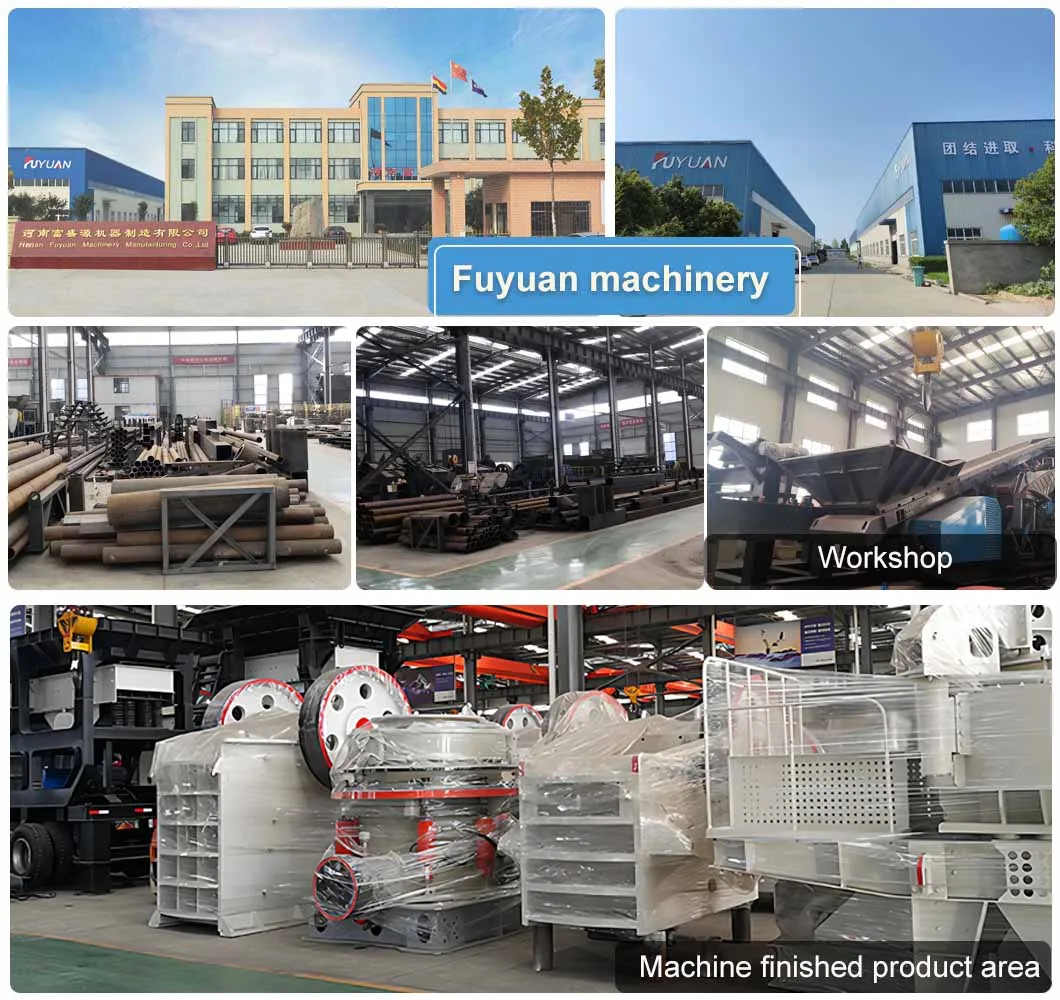

Company Information

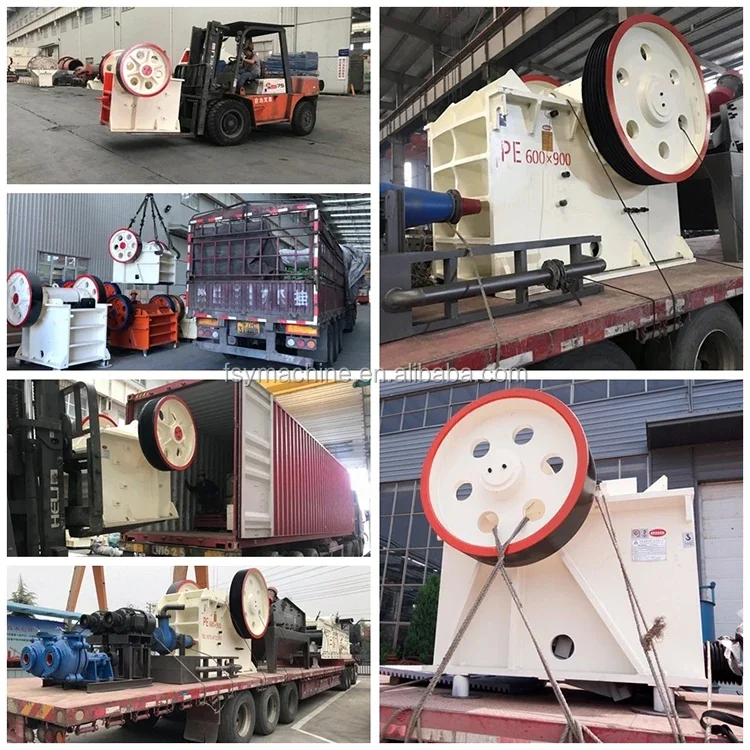

Packing&Shipping
Company Information
